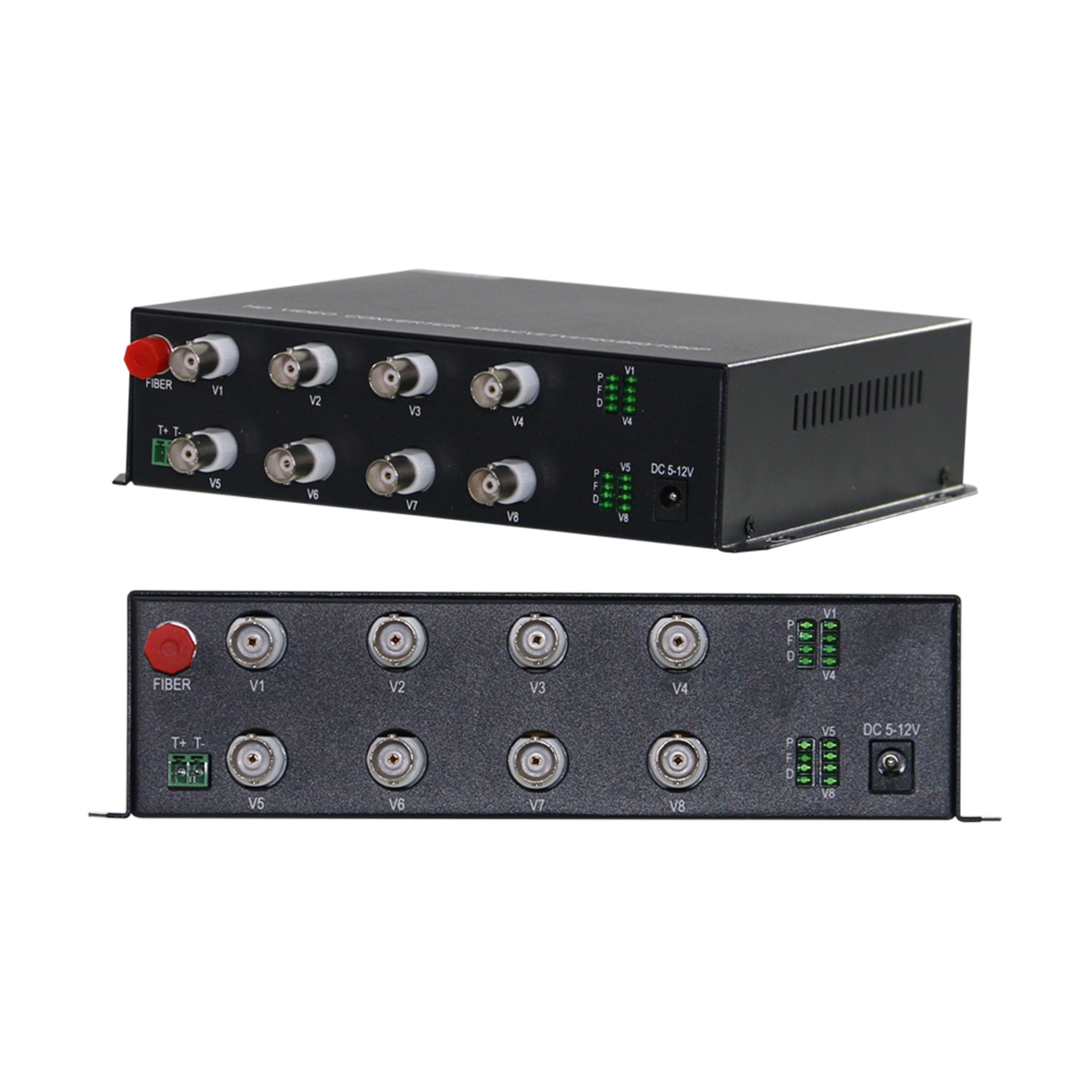

HGC-8FC20
คุณสมบัติสินค้า:
HGC-8FC20 Video Converter 8CH, Fiber Video Converter, Support 8Ch Video in, 4 in 1 (CVBS/AHD/TVI/CVI), Support Resolution 1080P - Single Mode, Rang 0-25Km - Simplex FC Type, Black Color With NO Logo
หมวดหมู่ : Accessories , For IPC ,
Share
- Card type or independent structure, which is applied to centralized management 4U framework
- 8-bit digital code and non-compression type video transmission
- Suport any high-resolution video signal
- 5Hz-10MHz video channel
- Automatic compatible PAL, NTSC and SECAM video system
- With APC circuit, constant input optical power, and large dynamic range
- Kilomega optical fiber transmission, large capacity, and easy to upgrade
- Power supply and other parameter state indication, whict can monitor the operation condition of system
- Support no-damage regenerative trunk of video
- Advanced self-adapting technlogy, and it is unnecessary to implement the adjusment of spot electrics or optics when using
- Industry-grade design and modularization design make the equipment reliable and flexible
- Can automatically restore the fuse of power sopply
- Full built-in power supply, and the appearance design of shell is unique
| Model | HGC-8FC20 |
| Video Interface number | 8ch HD-AHD 1080/CVI 1080/TVI 3MP/CVBS video & 1CH RS485 data |
| Bandwidth of video | 8MHz |
| Vide input & output | 75 (imbalance), BNC |
| impedance | |
| Video input&output | 1Vpp |
| voltage | |
| Differential gain | DG <1% (typical value) |
| Differential phase | DP <0.6 ํ (typical value) |
| Weighted signal-to-noise ratio | S/N> 67db (Weighted) |
| Data | |
| Physical interface | The industry standard connecting terminal |
| Interface Signal | RS485 |
| Code rat | 0-400Kbps |
| BER | <10-9 |
| Optical | |
| Connector | FC |
| Fiber tpe | single-mode fiber, single fiber |
| Transmission distance | single mode 20Km |
| Environmental demand | |
| environmental temperature | -30 ํC -+ 75 ํC |
| Storage environment | -40 ํC -+ 85 ํC |
| Relative humidity | 0-95% (no condensation) |
| Power input | DC5V/2A |
| Power supply Voltage | AC220V/50Hz |
| Dimensions | L*W*H : 108*105*27 |
