1/2.8" CMOS Progressive Scan, 1080P (4-in-1, AHD/TVI/CVI/CVBS), Min. Illumination 0.0001 lux, Day Night Support IR CUT, Lens 2.8-12 mm. lens /F1.3, IR LED 42 Pcs. (5mm. IR LED 40 Meter), IR Distance 40 Meters when IR on, Power Requirement DC12V (+-10%), Cable BNC, Surge Protection ESD surge protection up to 5000Volt power supply, OSD menu Support COC, IP66
หมวดหมู่ : CAMERA ,  AHD CAMERA ,
Share
** สินค้ากล้องวงจรปิดไม่รวมอะแดปเตอร์**

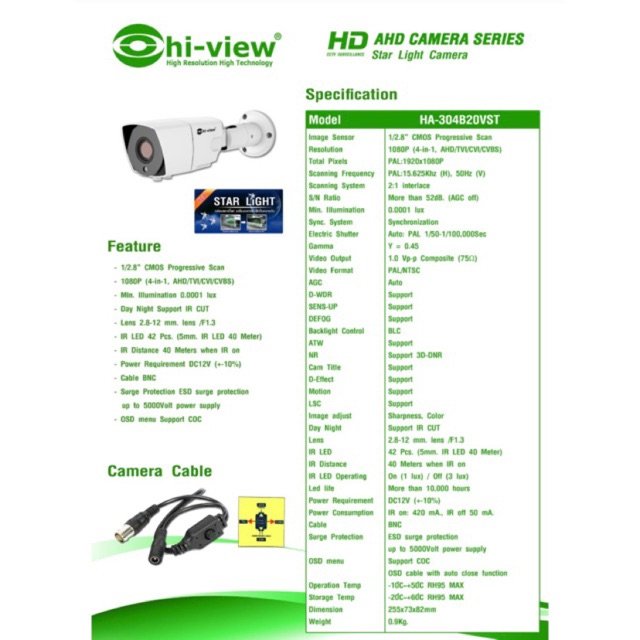

SPECIFICATION
Model | HA-304B20VST |
Image Sensor | 1/2.8" CMOS Progressive Scan |
Resolution | 1080P (4-in-1, AHD/TVI/CVI/CVBS) |
Total Pixels | PAL:1920x1080P |
Scanning Frequency | PAL:15.625Khz (H), 50Hz (V) |
Scanning System | 2:1 interlace |
S/N Ratio | More than 52dB. (AGC off) |
Min. Illumination | 0.0001 lux |
Sync. System | Synchronization |
Electric Shutter | Auto: PAL 1/50-1/100,000Sec |
Gamma | Y = 0.45 |
Video Output | 1.0 Vp-p Composite (75Ω) |
Video Format | PAL/NTSC |
AGC | Auto |
D-WDR | Support |
SENS-UP | Support |
DEFOG | Support |
Backlight Control | BLC |
ATW | Support |
NR | Support 3D-DNR |
Cam Title | Support |
D-Effect | Support |
Motion | Support |
LSC | Support |
Image adjust | Sharpness, Color |
Day Night | Support IR CUT |
Lens | 2.8-12 mm. lens /F1.3 |
IR LED | 42 Pcs. (5mm. IR LED 40 Meter) |
IR Distance | 40 Meters when IR on |
IR LED Operating | 0n (1 lux) / Off (3 lux) |
Led life | More than 10,000 hours |
Power Requirement | DC12V (+-10%) |
Power Consumption | IR on: 420 mA., IR off 50 mA. |
Cable | BNC |
Surge Protection | ESD surge protection up to 5000Volt power supply |
OSD menu | Support coc OSD cable with auto close function |
Ingress Protection | IP66 |
Operation Temp | -10 ํC~+50 ํC RH95 MAX |
Storage Temp | -20 ํC~+60 ํC RH95 MAX |
Dimension | 255x73x82mm |
Weight | 0.9Kg. |
