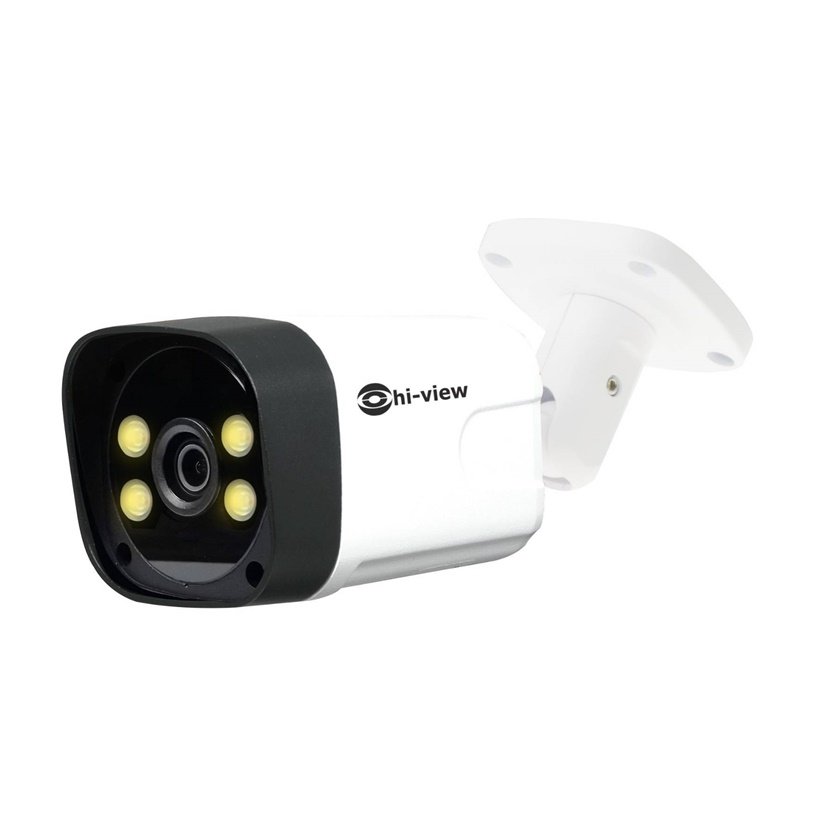

HP-55B30PEL กล้องวงจรปิดไฮวิว ระบบไอพี 3 ล้านพิกเซล ใช้งานภายนอกและภายใน บันทึกภาพสี 24 ชั่วโมง Hiview Bullet IP Camera PoE 3 MP
คุณสมบัติสินค้า:
1/2.7" progressive scan CMOS, Pixels 3.0 Megapixel, H.265, H.265+, Min. Color: 0.0001Lux @F1.2, B/W: 0.0001 Lux @F1.2, Focal Length Fixed len 3.6 mm, Warm Light Array x4, Light Distance 20-30M, Day&Night Full color, ONVIF Support, Protection Level IP66, Power 12V DC / PoE (IEEE802.3af)
Share
- 1/2.7" progressive scan CMOS
- Pixels 3.0 Megapixel, H.265, H.265+
- Min. Color: 0.0001Lux @F1.2
- B/W: 0.0001 Lux @F1.2
- Focal Length Fixed len 3.6 mm
- Warm Light Array x4
- Light Distance 20-30M
- Day&Night Full color
- ONVIF Support
- Protection Level IP66
- Power 12V DC / PoE (IEEE802.3af)
- ดาวน์โหลดสเปคสินค้า Hiview HP-55B302PEL ที่นี่
SPECIFICATION
| MODEL | HP-55B30PEL |
| Image Sensor | 1/2.7" SC4239P progressive scan CMOS |
| Pixels | 3.0 Megapixel |
| Min. Illumination | Color: 0.0001Lux @F1.2 / B/W: 0.0001 Lux @F1.2 |
| Shutter Speed | 1/50(1/60)-1/10,000s |
| Day / Night | Full Color / B/W |
| Wide Dynamic Range | DWDR |
| S/N Ratio | >50db |
| White Balance | Support |
| Gain control | Auto / Manual |
| Backlight Comprensation | Off / WDR / BLC / HLC |
| Lens | |
| Mount Type | M12 (12) |
| Focal Length | Fixed len 3.6 mm |
| Iris | Auto Electric Iris |
| Focus Mode | Manual focus |
| Angle of View | 82 ํ |
| Infrared / Warm Light | |
| Warm Light | Array x4 |
| Light Distance | 20-30M |
| IR Intensity | Intelligent variable |
| Day & Night | Full color |
| Video | |
| Compression | H.265, H.265+ |
| Image Resolution | Main stream: 3MP / Secondary stream: D1 |
| Frame Rate | Main Stream 3MP 2304x1296@20fps; |
| 2MP 1920x1080@25fps | |
| Substream D1@20fps | |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Bitrate Control | VBR / CBR |
| Dual-stream | Supported |
| Signal System | PAL/NTSC |
| Image Control | BLC / ATW / AGC / DWDR / Defoging / Anti Flicker |
| Image Filp | Flip Mirror |
| Audio | |
| Compression | G.711a |
| Network | |
| Network Protocols | TCP / IPv4, NTP, DHCP, DNS, RTSP |
| User Interface | IE, VMS |
| Application Programming | ONVIF |
| Alarm | |
| Alarm Triggers | Motion, Video Blind, IP Filter, Privacy Mask, Beepep sound, humanoid detect |
| Alarm Event | Mobile Report, alarm sound, write log, buzzer, alarm lights |
| Interfaces | |
| Ethernet | 10/100M, RJ45 interface |
| Audio Input | RCA x1 |
| Environmental | |
| Operating Temperature | -20 ํC ~ 60 ํC |
| Operating Humidity | 90% RH (Non-condensing) |
| Protection Level | IP66 |
| Electrical | |
| Power | 12V DC/POE (IEEE802.3af) |
| Power Consumption | Max. <8W |
| Machanical | |
| Material | Metal case |
| Weight | Approximately 0.31 KG |
| Dimensions | 183mm x 71mm x 60mm |
| Mounting Bracket | Bracket included |
