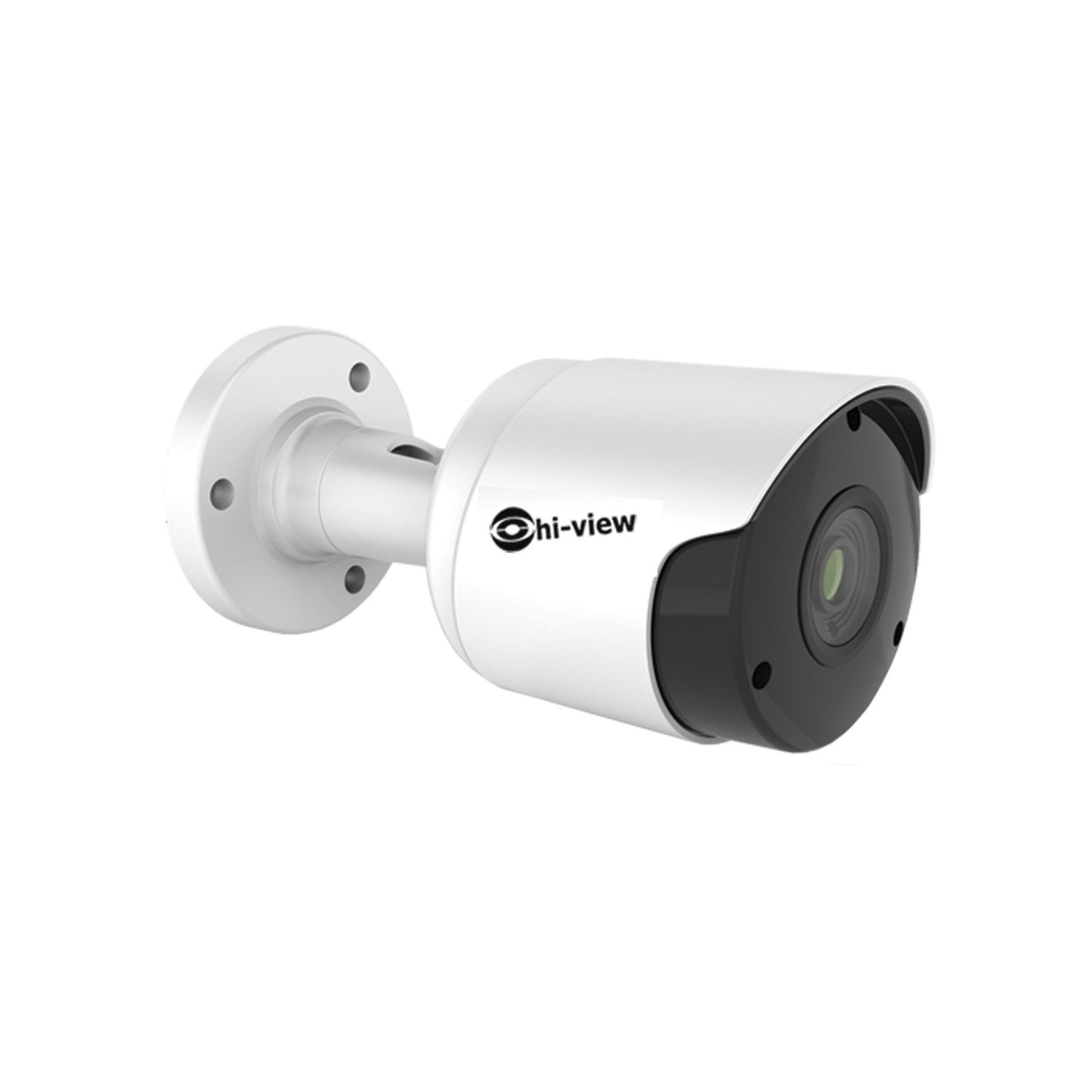

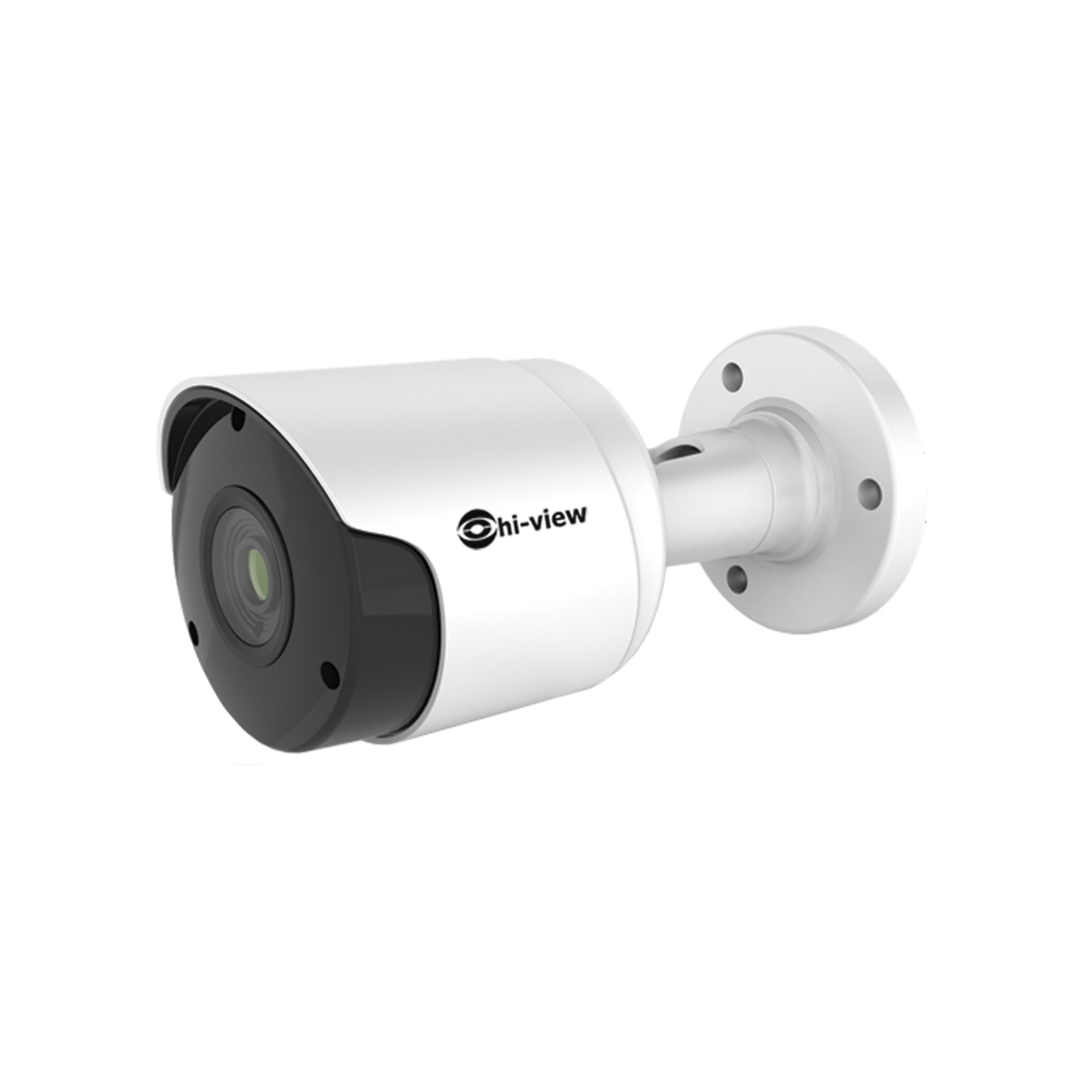

HP-78B20PE กล้องวงจรปิดไฮวิว ระบบไอพี 2 ล้านพิกเซล ใช้งานภายนอกและภายใน มีไมค์ในตัว บันทึกภาพและเสียง Hiview Bullet Mic-Built-in IP Camera PoE 2 MP
คุณสมบัติสินค้า:
1/2.7” SC2235H CMOS sensor, Sensor Resolution 1936Hx1096V (2MP) / H.265/H.264, Color 0.1lux @ F1.2(AGC ON); B/W 0 lux @ IR ON, Lens Fixed lens 3.6mm. / lens Mount M12, View of Angle H.FOV: 88ํ / Shutter 1/5 ~ 1/20000s, IR SMD 18 Pcs. / 30M., Microphone x1 Built-in (Adjust volume), DDNS 3322, Hiview, NO-IP, DYNDNS, ONVIF Support V2.6, Cloud P2P Support (http://www.icloud-eye.com), Ingress Protection IP66, Power Supply DC12V/1A.
Share
- 1/2.7” SC2235H CMOS sensor
- Sensor Resolution 1936Hx1096V (2MP) / H.265/H.264
- Color 0.1lux @ F1.2(AGC ON); B/W 0 lux @ IR ON
- Lens Fixed lens 3.6mm. / lens Mount M12
- View of Angle H.FOV: 88ํ / Shutter 1/5 ~ 1/20000s
- IR SMD 18 Pcs. / 30M.
- Microphone x1 Built-in (Adjust volume)
- DDNS 3322, Hiview, NO-IP, DYNDNS
- ONVIF Support V2.6
- Cloud P2P Support (http://www.icloud-eye.com)
- Ingress Protection IP66
- Power Supply DC12V/1A.
- ดาวน์โหลดสเปคสินค้า Hiview HP-78B20PE ที่นี่

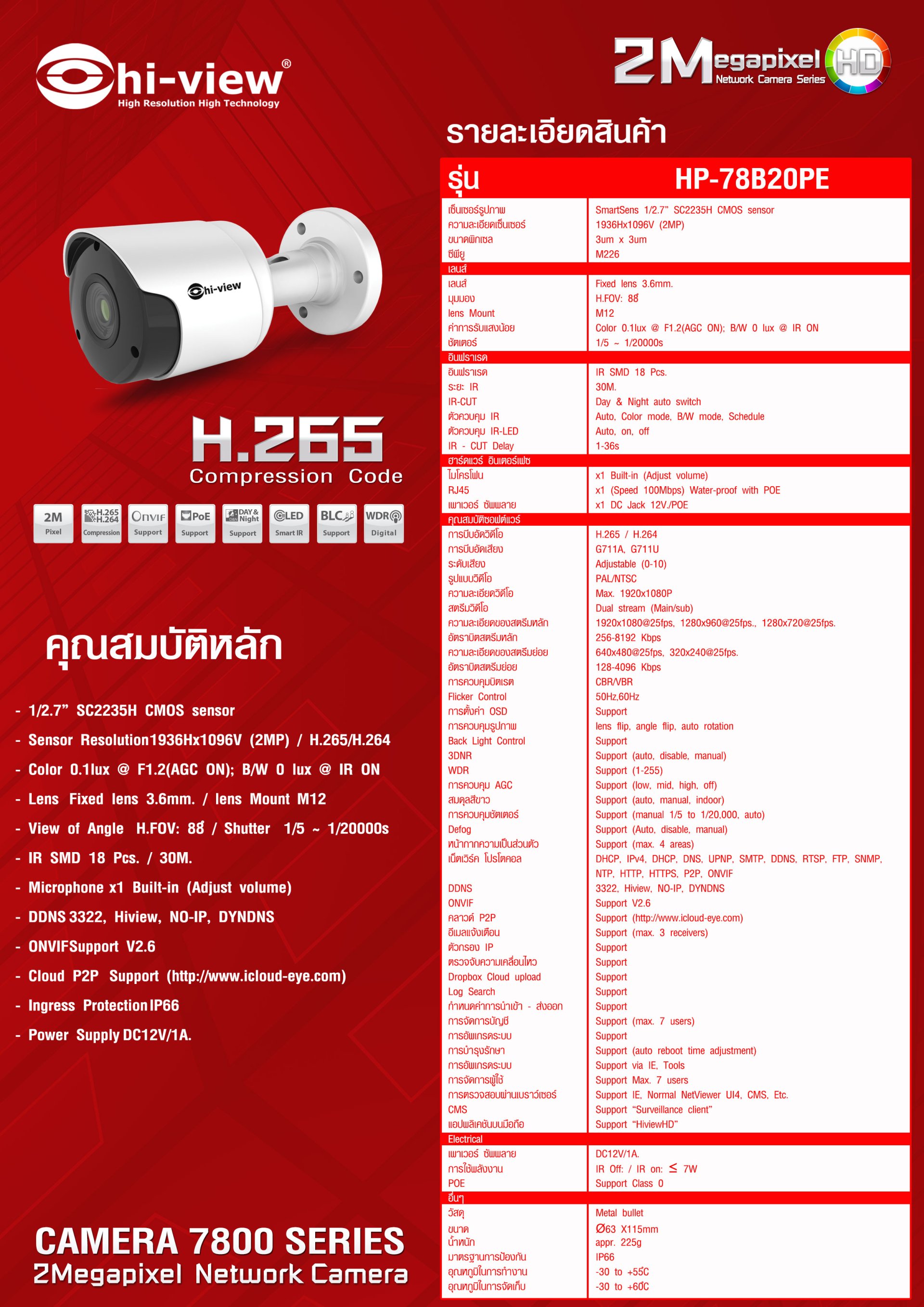

SPECIFICATION
| Model | HP-78B20PE |
| Image | SmartSens 1/2.7" SC2235H CMOS sensor |
| Sensor Resolution | 1936Hx1096V (2MP) |
| Pixel Size | 3um x 3um |
| CPU | M226 |
| Lens | |
| Lens | Fixed lens 3.6mm. |
| View of Angle | H.FOV: 88 ํ |
| lens Mount | M12 |
| Min. lllumination | Color 0.1lux@F1.2(AGC ON): B/W 0 lux @ IR ON |
| Shutter | 1/5 ~ 1/20000s |
| Infrared | |
| Infrared | IR SMD 18 Pcs. |
| IR distance | 30M. |
| IR-CUT | Day & Night auto switch |
| IR Control | Auto, Color mode, B/W mode, Scheddule |
| IR-LED Control | Auto, on, off |
| IR-CUT Delay | 1-36s |
| Hardware Interfaces | |
| Microphone | x1 Built-in (Adjust volume) |
| RJ45 | x1 (Speed 100Mbps) Water-proof with POE |
| Power Supply | x1 DC Jack 12V./POE |
| Software | |
| Video Sompression | H.265 / H.264 |
| Audio Compression | G711A, G711U |
| Audio Volume | Adjustable (0-10) |
| Video Format | PAL/NTSC |
| Video Resolution | Max. 1920x1080P |
| Video Streaming | Dual stream (Main/sub) |
| Main Stream resolution | 1920x1080@25fps, 1280x960@25fps., 1280x720@25fps. |
| Main Stream Bitrate | 256-8192 Kbps |
| Sub Stream resolution | 640x480@25fps, 320x240@25fps. |
| Sub Stream Bitrate | 128-4096 Kbps |
| Bitrate Control | CBR/VBR |
| Flicker Control | 50Hz, 60Hz |
| OSD Setting | Support |
| Image Control | lens flip, auto rotation |
| Back Light Control | Support |
| 3DNR | Support (auto, disable, manual) |
| WDR | Support (1-225) |
| AGC Control | Support (low, mid, high, off) |
| White Balance | Support (auto, munual, indoor) |
| Shutter Control | Support (manual 1/5 to 1/20,000, auto) |
| Defog | Support (Auto, disable, manual) |
| Privacy Mask | Support (max. 4 areas) |
| Network Protocol | DHCP, ipV4, DHCP, DNS, UPNP, SMTP, DDNS, RTSP, FTP, SNMP, |
| NTP, HTTP, HTTPS, P2P, ONVIF | |
| DDNS | 3322, |
| ONVIF | Support V2.6 |
| Clound P2P | Support (http://www.icould-eye.com) |
| Email Alarm | Support (max. 3 receivers) |
| IP Filter | Support |
| Motion Detection | Support |
| Dropbox Clound upload | Support |
| Log Search | Support |
| Import-export config | Support |
| Account Management | Support (max. 7 users) |
| System Upgrade | Support |
| Maintain | Support (auto reboot time adjustment) |
| Upgrade System | Support via IE, Tools |
| Users Management | Support (Max. 7 users) |
| Browsers Monitoring | Support IE, Normal NetViewer Ul4, CMS, Etc. |
| CMS | Support "Surveillance client" |
| Mobile Application | Support "HiviewHD" |
| Electrical | |
| Power Supply | DC12V/1A |
| Power Consumption | IR Off: / IR on: ≤ 7W |
| POE | Support Class 0 |
| Others | |
| Casing Material | Metal Bullet |
| Dimension | Ꝋ63 x 115mm |
| Weight | appr. 225g |
| Ingree Protection | IP66 |
| Operating Temperature | -30 to +55 ํC |
| Storage Temperature | -30 to +60 ํC |
